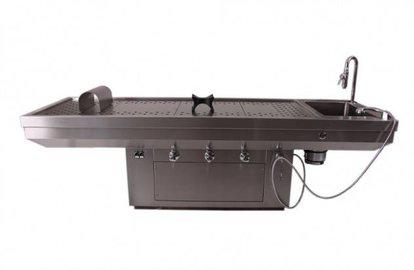

Autopsy table with downdraft air extraction

Autopsy table with downdraft air extraction

Table top

• 4 removable perforated dissecting plates (material thickness 2 mm, holes Ø 20 mm)
• Large suction area (750 x 2000 mm) with built-in sprinkler-system (with stop valve) for continuous circular table rinse, with 2 removable perforated residual container (Ø 100 mm, height 100 mm), with overflow and drain.
• Ventilation duct (Ø 200 mm) with removable protection plate
• The construction of the table prevents the water or liquides from entering into the ventilation duct.
• Extra large organ basin (600 x 400 x 200 mm), seamlessly welded, free from sharp edges and well polished, with shower head holder, drain and stand pipe.

Rectangular column

• Inside of this column, is a strong frame made of stainless steel (material thickness 2 mm) which prevents the table from tilting (the frame will be screwed onto the floor).
• Chromium-plated toggle lever for cold and warm water, 2,5 meter shower hose with adjustable shower head, 1 splash proof power socket.
• Completely prepared for connection to the facility ventilation system (exhaust air volume flow: min. 730 m³/h).
• Removable revision door
